Description

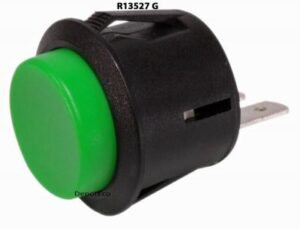

Green Replacement Momentary Switch fits Volcano Digit

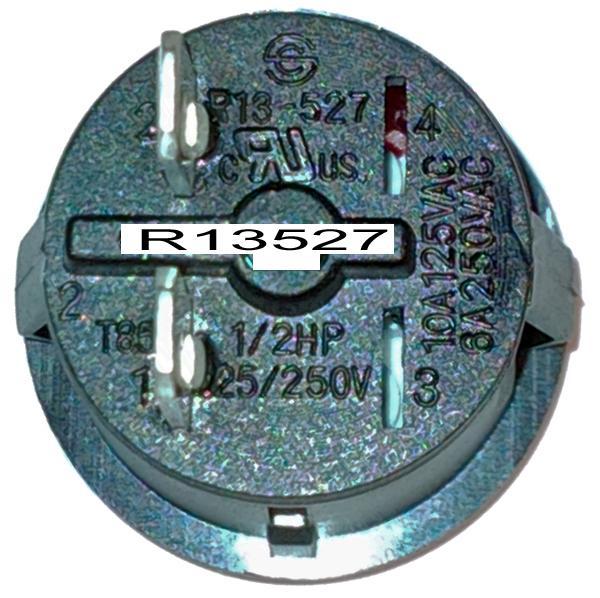

R13-527-G 10 Amp 125 VAC, 6 Amp 250 VAC
- Green Replacement momentary switch fits Volcano Digit.
Note, Replacement switch top will have solid color top as pictured - Model R13-527-G
- 10 A 125 VAC, 6 A 250 VAC
- Momentary ON 2 pins – Cap Color Green
- Fits Volcano Digit – Also Found in some Bissell Vacuums
- Warranty is good for 30 days after your receipt. Please contact us if you need a replacement with in the 30 days.
Replacement Momentary Switch for your Volcano Digit. Green momentary on switch 10 A 125 VAC.ย Easy replacement at home no need to ship off your Volcano. Simply pop out your broken switch, pop in your new switch and plug in the 2 wires. You will be up and running in minutes.
Note, this item is not authorized for resale without our prior written consent. Please beware of imposters selling our wares,ย buy your Volcano replacement switch from DepotEco.
Volcano Switch Replacement Instructions Click To Read.ย You will need a Torx screwdriver tool to remove the case screws. Older Volcano units shipped with T8 Torx Screws and then began shipping with T8 Security Torx screws. Newer units also now ship with a T10 Security Torx screw.
(Please verify your screw types T8 or T10)
5 reviews for Volcano Digit Replacement Switch Green R13-527-G
Ordered replacements for switches on my Volcano Classic. Original parts and really fast shipping (fast delivery too). Thanks for such a great service.
Finally had to use one of these spare switches, and am happy to report it works exactly as intended.
The old switch was a bear to remove (not surprising), but this replacement popped right in and I was able to connect it with no problems.
The switch was a exact replacement for the volcano and easy to install. To keep track of the connections I numbered them 1,2,3 as I removed them from the old switch. I had to gently pry the out switch out the front with a thin slotted screw driver after disconnecting the wires.
January 30, 2014
Perfect Fix for my Broken Volcano Switch
Thank you so much, This switch is the exact right part. easy to install and delivered very fast. Perfect!.
Reviewed by sam44
on Dec 16, 2012
By Trip. Fontaineon
November 6, 2012
This is the perfect replacement for a Volcano Vaporizer (circa 2008) rocker switch. Both my HEAT and AIR buttons went lame after about 4 years of 365 day use. They would still switch on and off, but I’d have to keep pressure to one side, and be gentle. Enough of that nonsense…
FOLLOW THESE INSTRUCTIONS
1. Use a size 8 Torx security bit to remove the screws, and remove the stainless steel cover. Be gentle. Mine had a wire attached at the back, only allowing me to remove it so far.
2. Remove the wires from the male ends of the old rocker switch. This took me quite a while, and it became clear that they didn’t want the average Joe messing with it. So I used an exact-o blade to cut the plastic housings covering the connection point. Then I was able to use needle nose pliers to remove the wires at the connection point. I kept the plastic housing to put back on after.
3. Remove old rocker switch. I just broke the plastic spring piece to get it out. You can remove it and keep it in tact, but its much more difficult and involves a lot of awkwardly placed finger pressure. Pop the old one out, but don’t throw it out yet!
4. **IMPORTANT** Remove the BLACK RUBBER RING from your old switch. The new ones (however awesome) DON’T have them, so it’s a keeper, and worth its weight in gold. Now place it on the new rocker switch. It will fit like a dream only because of this o-ring piece.
5. Make sure you have your switch facing the right direction, because you only get one shot at the next part. Pop it in, and attach the wire connections CORRECTLY!
6. Use something wet to clean all the dust from the inside of the machine, and thank your lucky stars. You just gave your Volcano Vaporizer another 4 years of life. I love you Germany. I love you for producing the BMW of Vaporizers…
